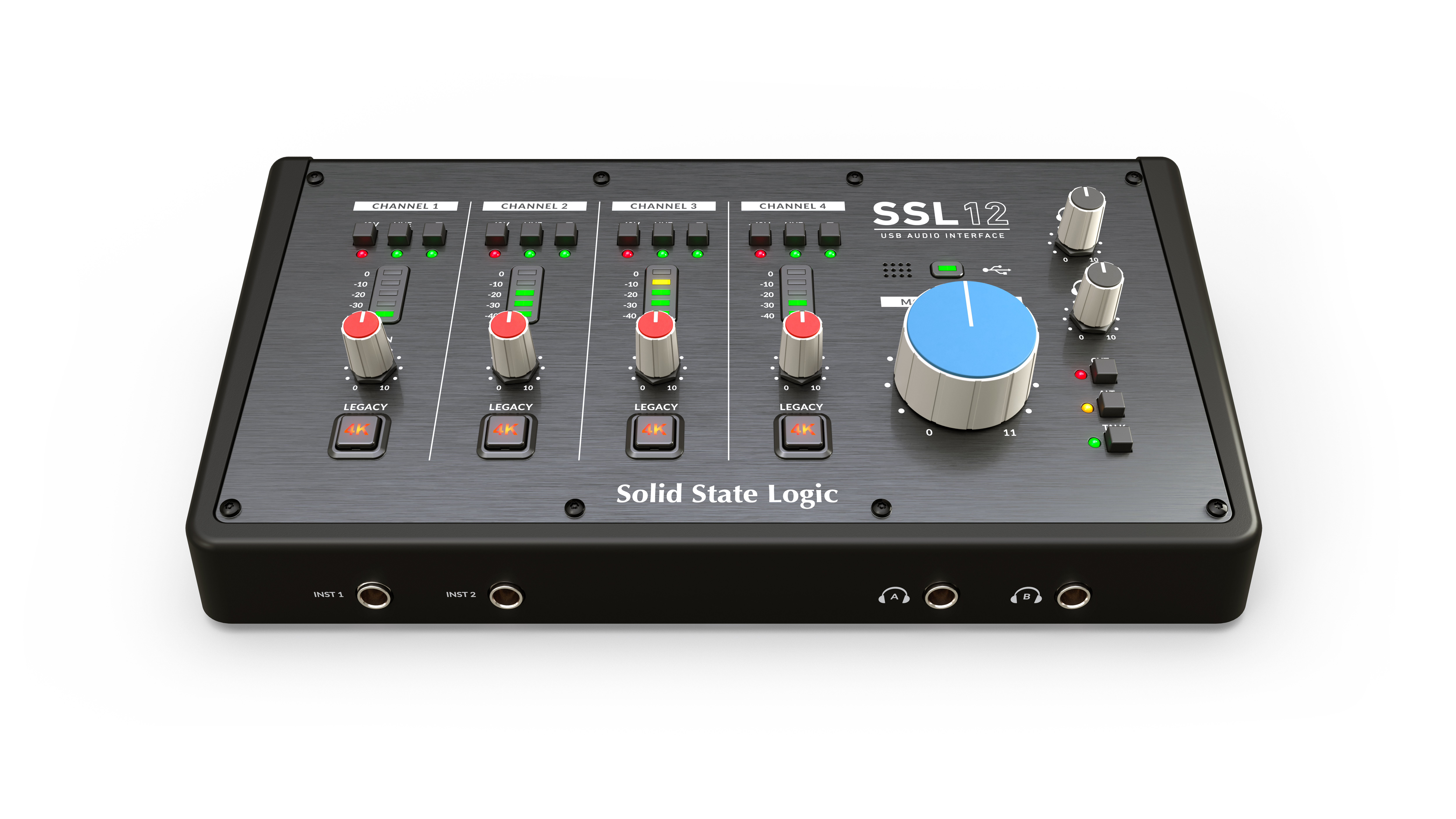

F/A - 729705X1
Sub Assembly Parts
| Partcode | Description |
|---|---|
| 62A065X1 | PCB SSL12 USB AUDIO INTERFACE |
| 62A066X1 | PCB SSL12 CONNECTOR CARD INST HP JACKS |
| 62A066X2 | PCB SSL12 CONNECTOR CARD INST HP JACKS |
| 539705031B | PANEL TOP ANODISED SSL12 |
| 539705020G | PANEL SUB-REAR SSL12 |
| 539705050D | PANEL REAR PAINTED SSL12 |
| 539705007E | PANEL BASE SSL12 BLACK |
Potentiometers
| Partcode | Function | PCB Ref |
|---|---|---|
| 12JGFGFS | Mic gain 1 | GAIN1 |
| 12JGFGFS | Mic gain 2 | GAIN2 |
| 12JGFGFS | Mic gain 3 | GAIN3 |
| 12JGFGFS | Mic gain 4 | GAIN4 |
| 12JSBSB9 | Headphone 1 Level | HP1 |
| 12JSBSB9 | Headphone 2 level | HP2 |
| 12JSBSB9 | Monitor Level | MON1 |
Switches
| Partcode | Function | PCB Ref |
|---|---|---|
| 33DAK12C | Power | SW1 |
| 33DHT15M | Ch1 48v | 48v1 |
| 33DHT15M | Ch2 48v | 48v2 |
| 33DHT15M | Ch3 48v | 48v3 |
| 33DHT15M | Ch4 48v | 48v4 |
| 33DHT15M | Ch1 Line | LIN1 |
| 33DHT15M | Ch2 Line | LIN2 |
| 33DHT15M | Ch3 Line | LIN3 |
| 33DHT15M | Ch4 Line | LIN4 |
| 33DHT15M | Ch1 HPF | HPF1 |
| 33DHT15M | Ch2 HPF | HPF2 |
| 33DHT15M | Ch3 HPF | HPF3 |
| 33DHT15M | Ch4 HPF | HPF4 |
| 33DHT15M | Cut | CUT |
| 33DHT15M | Alt | ALT |
| 33DHT15M | Talk | TALK |
| 33DJR152 | Ch1 4K | 4K1 |
| 33DJR152 | Ch2 4K | 4K2 |
| 33DJR152 | Ch3 4K | 4K3 |
| 33DJR152 | Ch4 4K | 4K4 |
Other Miscellaneous Parts
| Partcode | Function | PCB Ref |
|---|---|---|
| 32PB05ER | Midi In | MIDI_IN |
| 32PB05ER | Midi Out | MIDI_OUT |
| 32PD07ET | Mic/Line 1 | IN1 |
| 32PD07ET | Mic/Line 2 | IN2 |
| 32PD07ET | Mic/Line 3 | IN3 |
| 32PD07ET | Mic/Line 4 | IN4 |
| 32PH03CX | HP1 | JACK1 |
| 32PH03CX | HP2 | JACK2 |
| 32PH05CC | Instrument 1 | JACK1 |
| 32PH05CC | Instrument 2 | JACK2 |
| 32PH23ET | Outputs 1+2 | OUT_1+2 |
| 32PH23ET | Outputs 3+4 | OUT_3+4 |
| 32SHRAAA | ADAT Optical | SK1 |
Pots and Switch Caps
| Partcode | Function | Description | Qty |
|---|---|---|---|
| 34N32FF6 | Monitor Level | 32MM CAP BLUE WITH WHITE LINE | 1 |
| 34R11FF2 | Gain | KNOB CAP 11MM RED - WHITE LINE 2-SHOT | 4 |
| 34R11FF0 | HP Level | KNOB CAP 11MM BLACK - WHITE LINE 2-SHOT | 2 |
| 34R116F8 | All Small Pots | KNOB PUSH-ON 11X6 2SHT LINE 0DEG PLSTC SHFT ONLY | 6 |
| 34R366F8 | Monitor Level | 36MM X18MM KNOB PUSH ON WITH LINE | 1 |
| 539702078B | 4K Switch Bezel | 4K SWITCH BEZEL USBAUDIO | 4 |
| 539702075G | 4K Switch Cap | SWITCH CAP SQ 4K ILLUMINATED | 4 |
| 539702072A | All Switches | SWITCH CAP CF+DR 6x6 BLACK USBAUDIO | 15 |
| 53911050B | Power Switch | SWITCH CAP ALPS SPUJ SQUARE ABS - BLACK | 1 |
