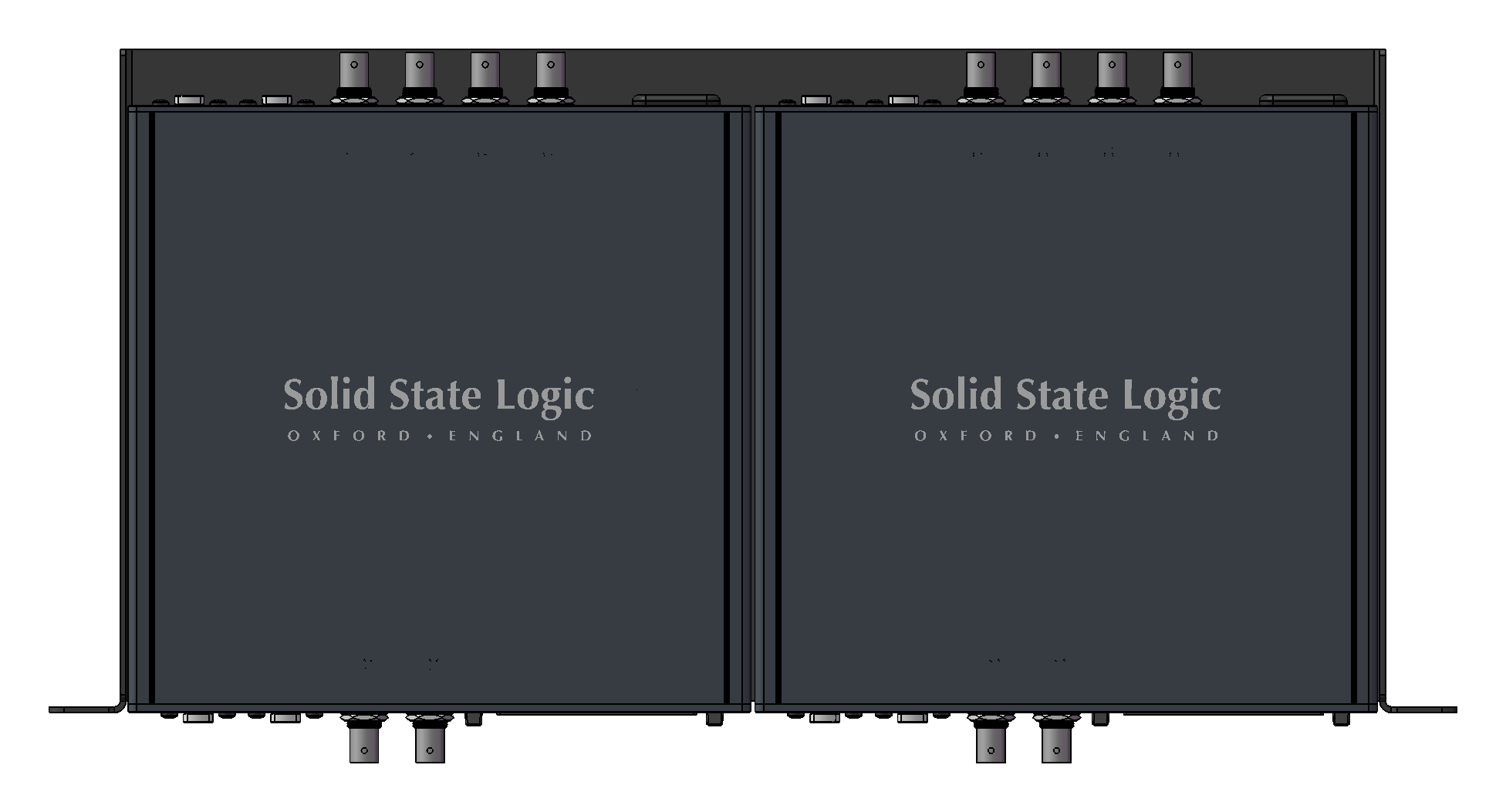

SSL offers a rack shelf (part number 536960006C) that can accommodate one or two UMD192 units. The shelf is designed so that the UMD192 fits into a 1RU space without requiring the removal of the rubber feet. It provides three mounting positions, allowing the unit to be positioned at different depths from front to back.
Alternatively, you may choose to drill your own mounting points into a rack shelf to secure a UMD192. This article provides the information you need to do so safely and accurately.

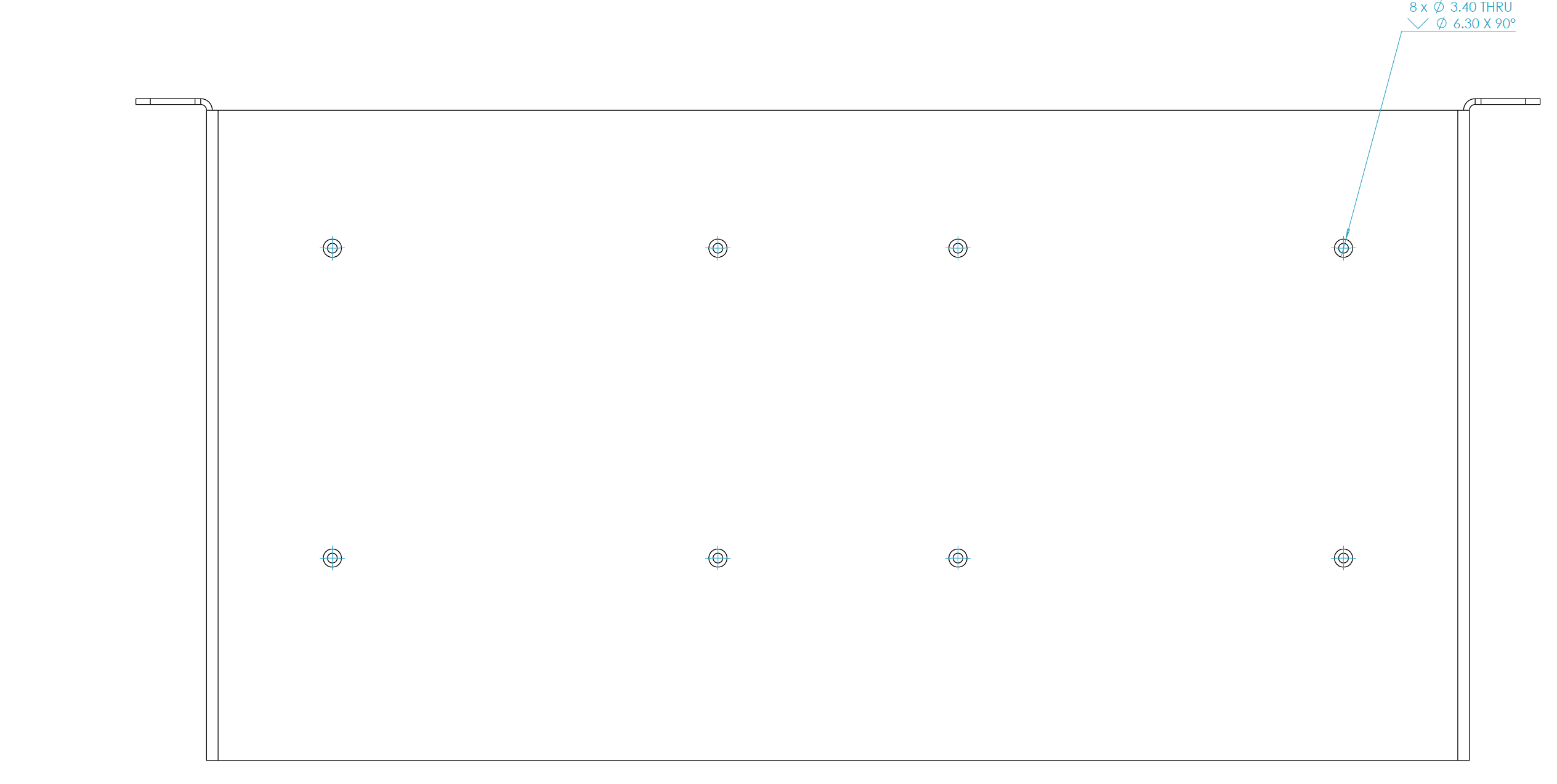

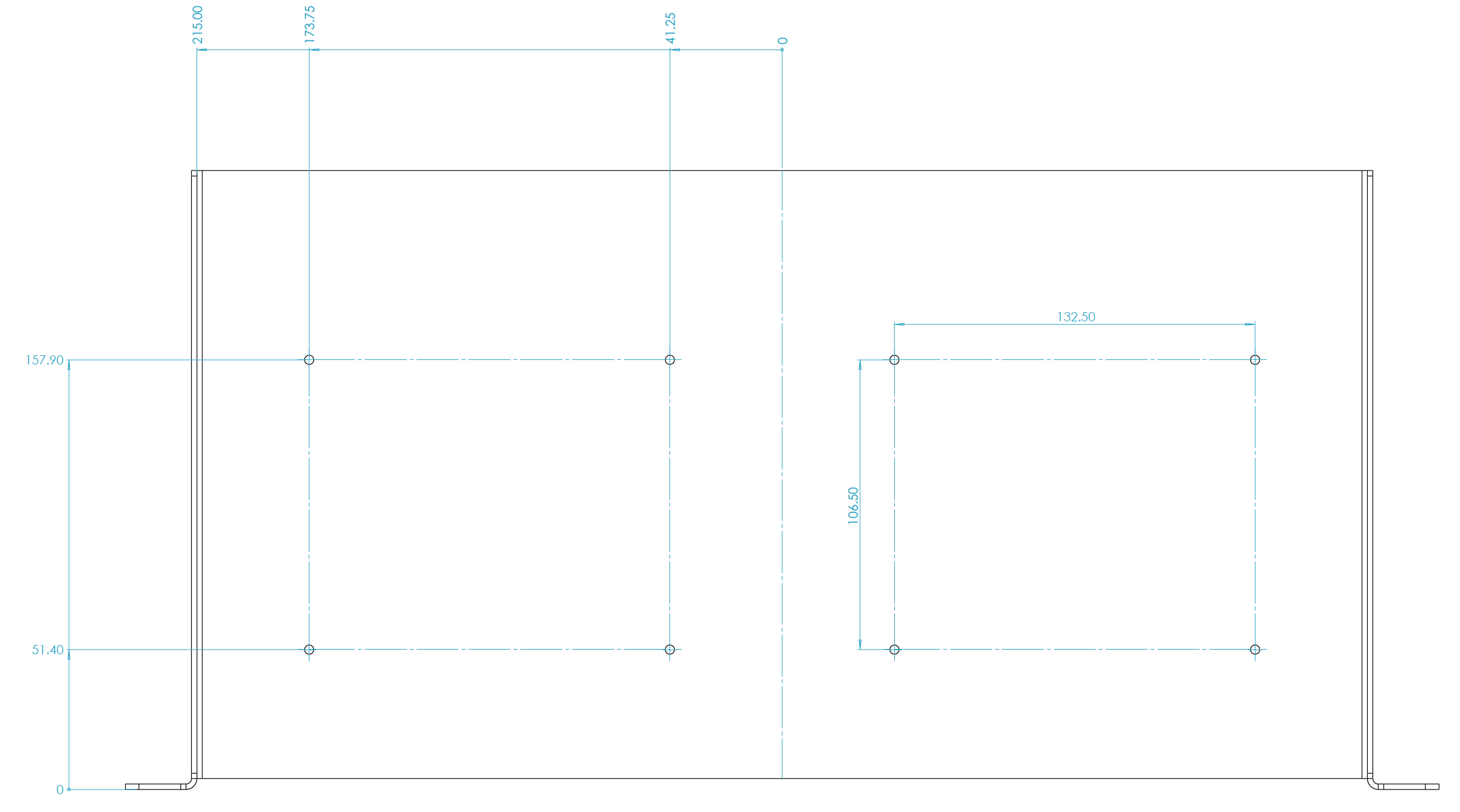

- Mounting the UMD192 to a standard rack shelf requires the drilling of 4 M3 CSK holes per UMD192 unit.
- Minimum screw length is M3 X 6MM
- Maximum screw length is M3 X 40MM

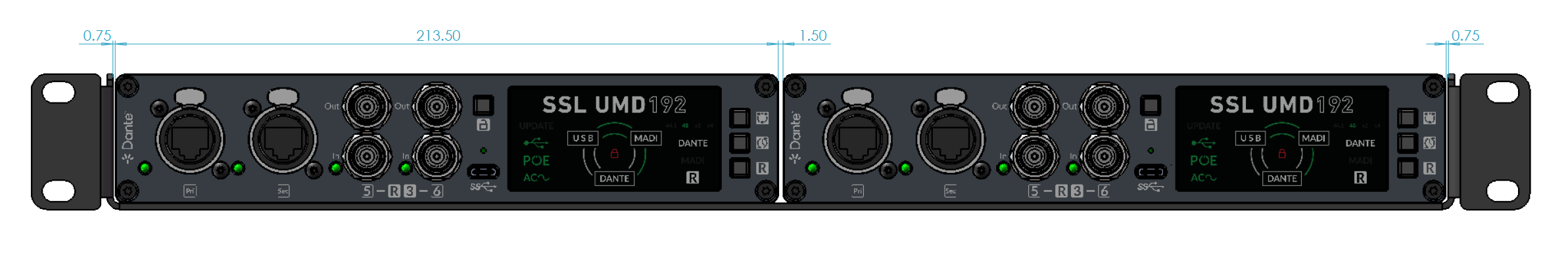

- UMD192 overall width is 213.5MM
- Removal of adhesive rubber feet is required for the assembly to fit within a 1U rack slot
